M2,5 RS - 112m3/h - (EQUIPPED BY STETTER India)

with 5 or 6 boxes aggregate inline silo (row silo)

We don't just deliver - we implement your entire project.

From planning to commissioning - everything from a single source.....


manufactory: Stetter India / Tublorom
model: M2,5 RS
capacity per hour: ca. 112m³/h
row silo mit weighing belt : 5x30m³ or 6X30 (total 150m3/180m3)
Mixer: 1 pcs  Stetter twin shaft mixer DW2.5
Dosing
Aggregate, Water, Cement, Chemical dosing
Cement silos:  Optionally 3x 69m³ / ca. 80t oder 80m³ / ca. 100t
Cement silo equipment: 3x cement screws, Filter, etc. (include)
Cladding/housing: optionally possible
control and Software: full automatic GEDIS / IBS33W
Delivery: Delivery FREE SITE are optionally possible
Assembly and commissioning: are optionally possible
Operators stand: optionally possible / in a office container
Power connection:

Three phase current 415 V, 50 cps  ± 10%

Water approx. 4-5 bars, DN 80, 60 mc/h

Power supply approx. 220 kVA for concrete mixing plant


include CE Certifikate

including complete documentation and, if required, necessary noise and emission reports



main parts

Mixer

  • Stetter twin shaft mixer
  • 3750/2500 l
  • output per charge: 2,5m3 compacted concrete

aggregate storage / inline silo / row silo

  • total
  • 5X30m3 / 150m3
  • 6X30m3 / 180m3
  • incl. skip hoist
  • incl. weighing belt (max 5.000 kg)

MOBILE FRAME

  • MOBILE FOUNDATION FRAME - include
  • for the mixing plant
  • and for the row silo

Dosing and Feeding

  • Aggregate: Skip : 5000kg
  • cement: 1 X max 750kg
  • water: 1 X max 375 kg
  • admixture -chemicals 2 X 20l  (expansion possible)

feeding by skip hoist

Control and Software

  • Brand : GEDIS Germany

  • Type:  IBS33W

  • full automatic

  • including safety devices

CEMENT SILO-EQUIPMENT

for 3 cement silos, consisting of

  • screw conveyor,
  • filter,
  • overfill protection, etc.

for an additional charge - cladding / enclosure, optional:

  • Upper part - housing of the mixer platform (including 1 window + 1 door), weighing devices on the mixer platform, cover of the skip hoist(side parts with sheet metal cover)
  • Lower part - housing of the row silo (aggregate storage)

cement silos

For an additional charge we also supply cement silos in the sizes

  • approx. 65m3/ 80to
  • approx. 80m3/ 100to
  • if required including mobile foundations

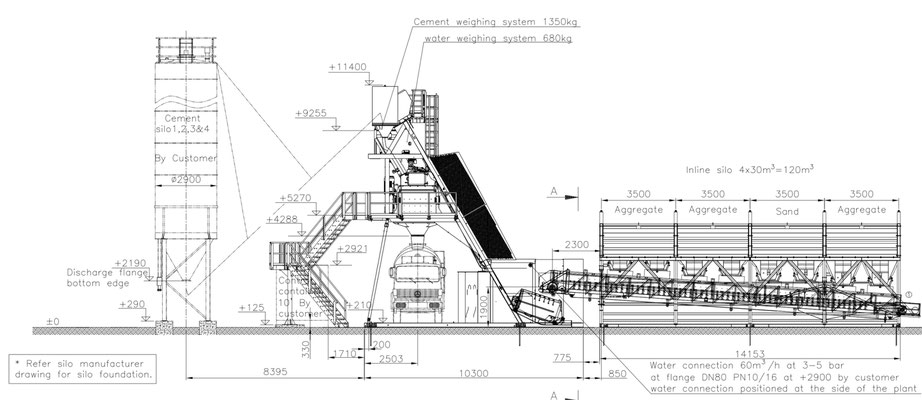

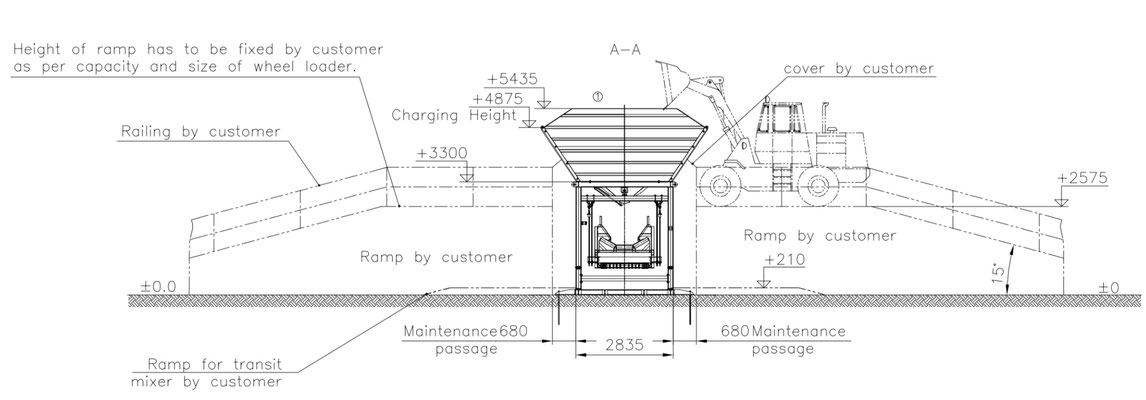

sketch

(AS AN EXAMPLE OF A SYSTEM WITH 4 ROW SILO)


pictures


REFERENCE OBJECT M2,5TZ FRAPORT

contruction site - international Airport Frankfurt/Main

M2.5TZ including full enclosure(Einhousing), warm water heating, additive/chemical container and recycling plant
